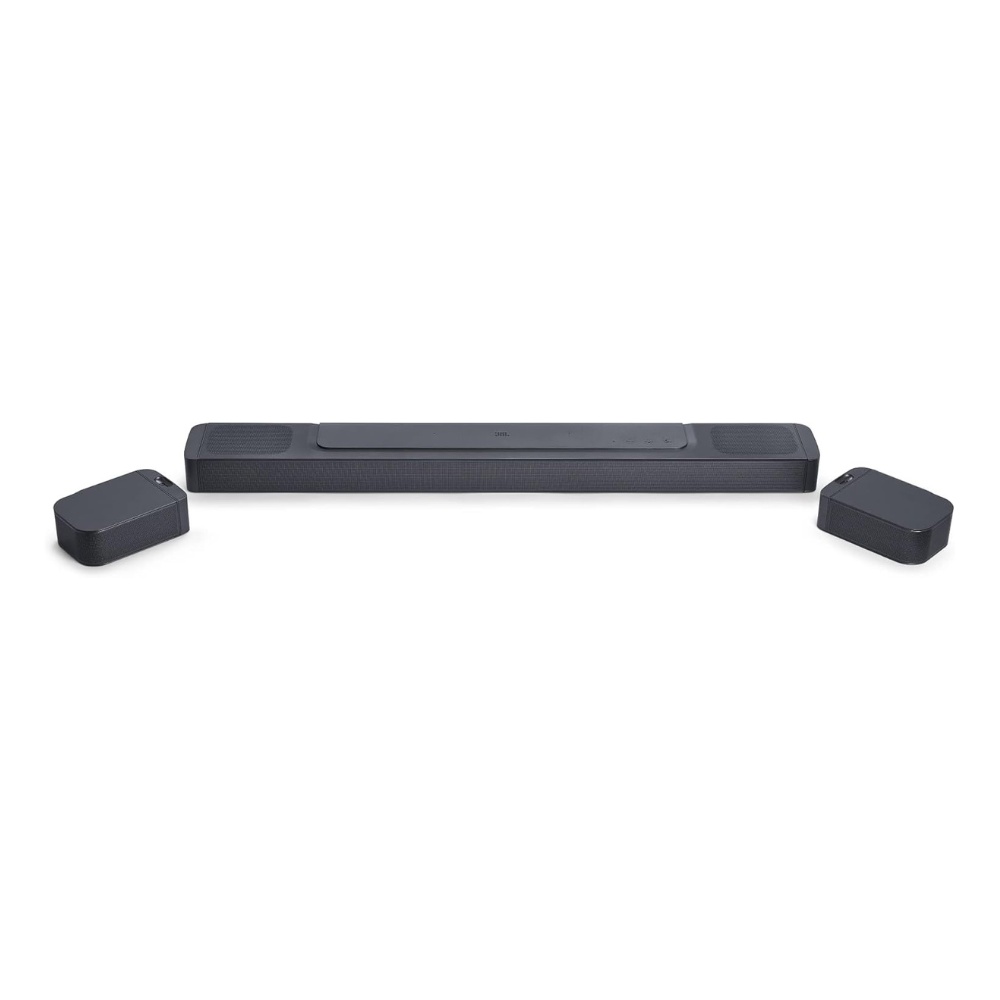

JBL Bar 800 5.1.2 Channel Soundbar with Detachable Speakers

True Dolby Atmos® Surround Sound

Immerse yourself in theater-quality 3D sound. With two up-firing drivers, the JBL Bar 800 delivers true Dolby Atmos® 3D surround sound

Real surround sound with detachable surround speakers

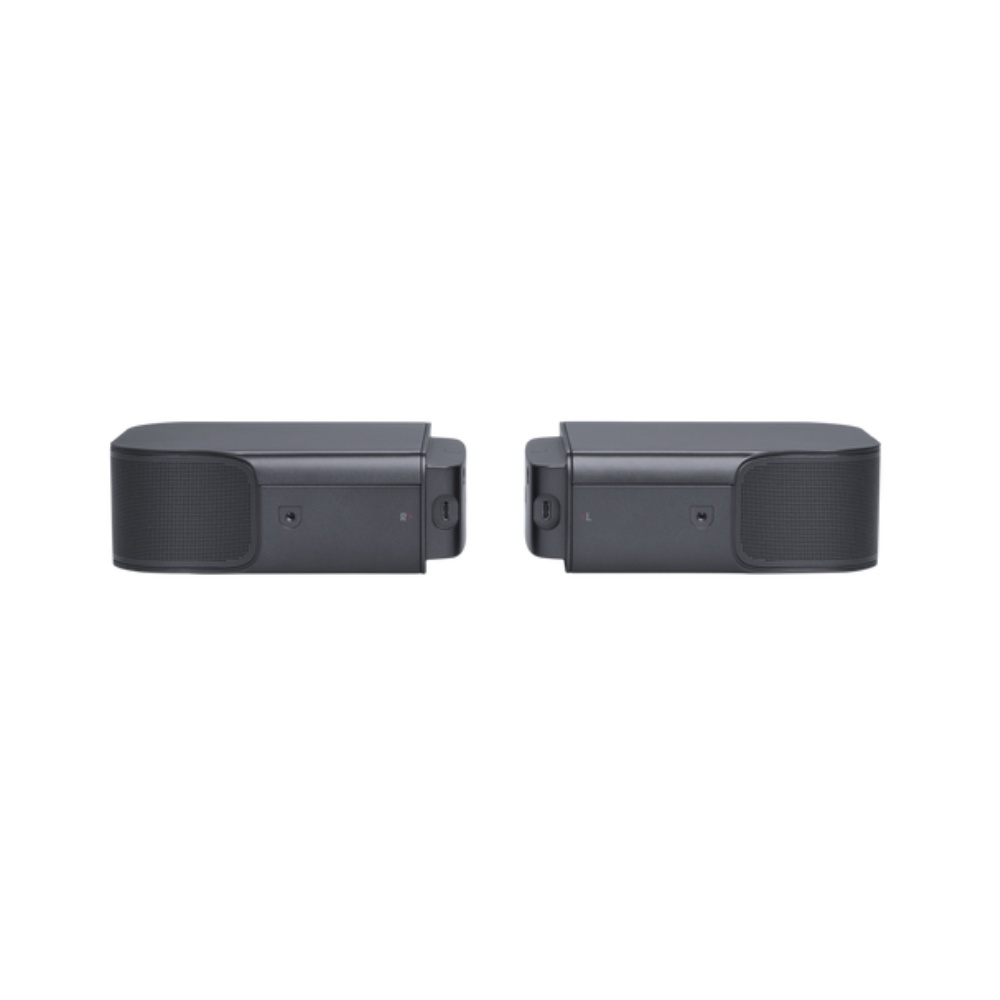

Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio

Specs

General Specifications

Power supply 100 – 240V AC, ~ 50/60Hz

Networked standby power < 2.0W

Operating temperature 0°C – 45°C

Audio Specifications

Total speaker power output (Max @THD 1%) 720W

Soundbar output power (Max @THD 1%) 340W

Surround speaker output power (Max @THD 1%) 2x 40W

Subwoofer output power (Max. @THD 1%) 300 W

Soundbar transducer 3x (46×90)mm racetrack drivers, 3x 0.75″ (20mm) tweeters, 2x 2.75″ (70mm) up-firing full-range drivers

Surround speaker transducer 1x (46×90)mm racetrack driver

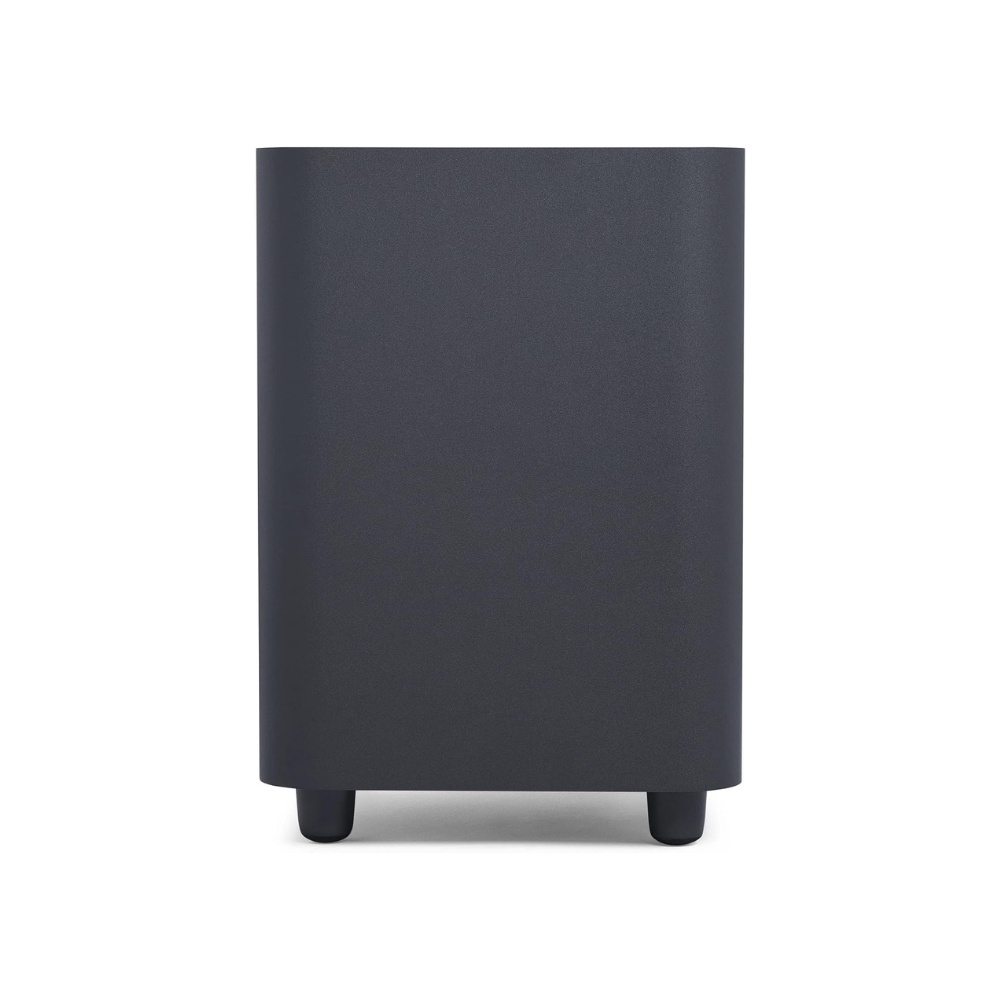

Subwoofer transducer 10” (260mm)

Frequency response 35Hz – 20kHz (-6dB)

Audio inputs 1 Optical, Bluetooth, Chromecast Built-in, AirPlay and Alexa MRM, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D) 1174 x 56 x 120 mm / 46.2″ x 2.2″ x 4.7″

Main soundbar dimensions (W x H x D) 884 x 56 x 120 mm / 34.8″ x 2.2″ x 4.7″

Detachable surround speaker dimensions (each) (W x H x D) 145 x 56 x 120 mm / 5.7″ x 2.2″ x 4.7″

Subwoofer dimensions (W x H x D) 305 x 440.4 x 305 mm / 12″ x 17.3″ x 12″

Soundbar weight 3.4 kg / 7.4 lbs

Detachable surround speaker weight (each) 1.3 kg / 2.8 lbs

Subwoofer weight 10 kg / 22 lbs

Packaging dimensions (W x H x D) 1000 x 375 x 475 mm/ 39.4″ x 14.8″ x 18.7″

Packaging Weight 18.9 kg / 41.6 lbs

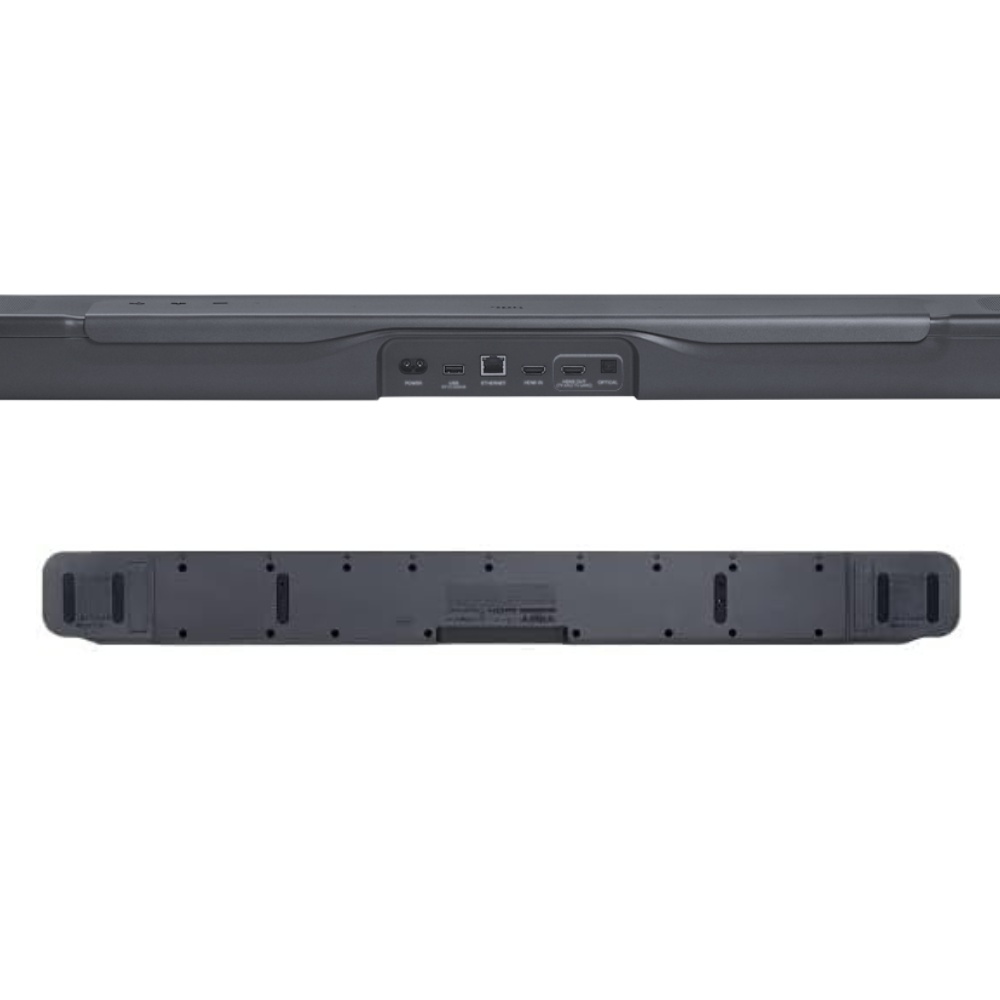

Control and Connection Specifications

USB port Type A

USB rating 5V DC, 0.5A

Supporting file format MP3

MP3 codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate 16 – 48 kHz

MP3 bitrate 80 – 320 kpbs

Bluetooth version 5.0

Bluetooth profile A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range 2400MHz – 2483.5MHz

Bluetooth transmitter power <15dBm (EIRP)

Wi-Fi network IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power < 20dBm (EIRP)

5G Wi-Fi transmitter frequency range 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz

5G Wi-Fi transmitter power 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range 2406 – 2474MH

2.4G wireless transmitter power ＜10dBm (EIRP）

Battery

Lithium battery 3.635V, 3283mAh

Video Specifications

HDMI video input 1

HDMI video output (with Enhanced Audio Return Channel, eARC) 1

HDMI HDCP version 2.3

HDR pass through HDR10, Dolby Vision

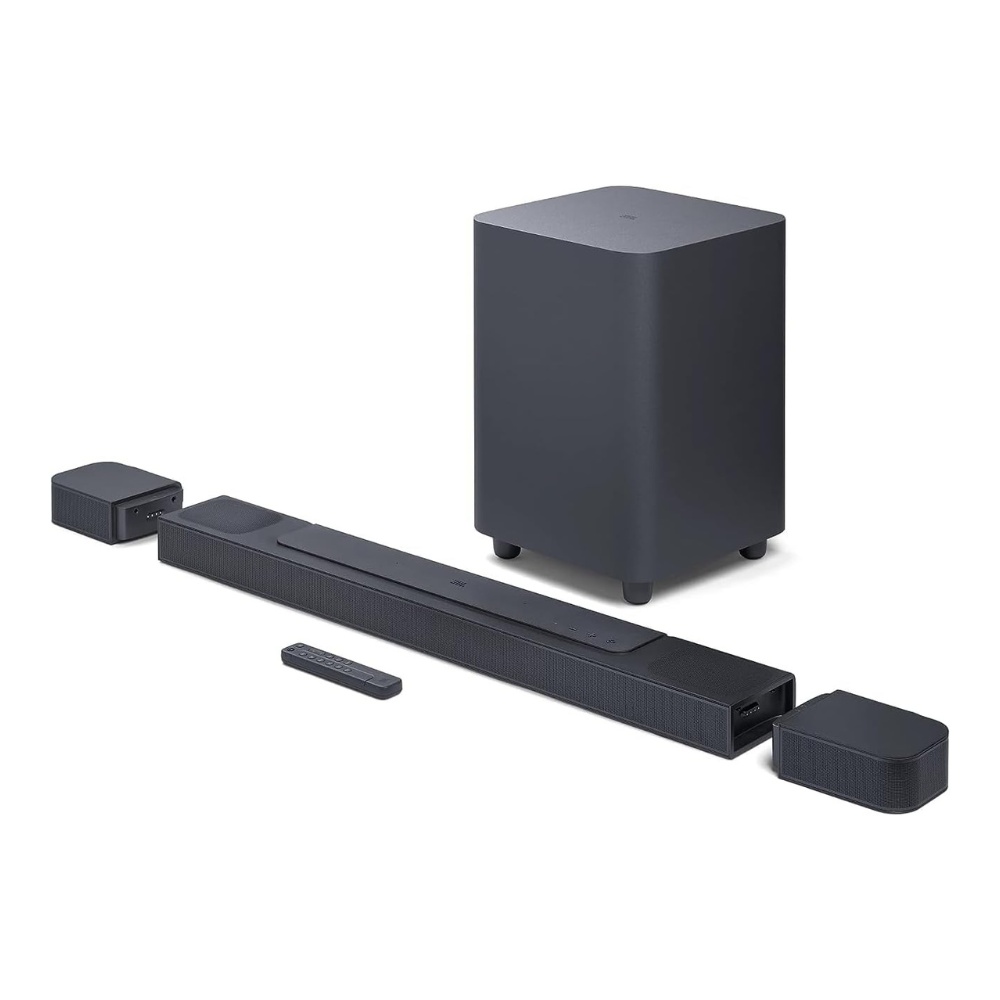

What’s in The Box?

1x Main soundbar

2x Detachable wireless surround speakers

1x Wireless subwoofer

Remote control with 2 x batteries

Power cords (up to 8pcs depending on region SKUs)

1 x HDMI cable

2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws

4 x Side caps

Quick start guide

Safety instruction and Warranty card

Wall mount template
